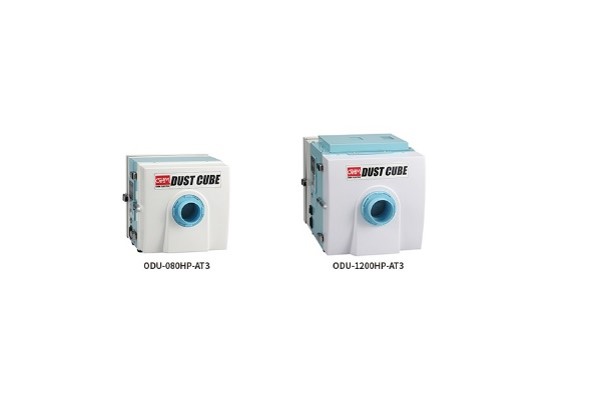

- Classification: OHM electric, OHM Distributor, OHM Electric Distributor, Clean room, High pressure type
- Suctions fine airborne dust with a large volume of air like a vent fan For clean room use
- Max. air volume: 2.2 m3/min~5.5 m3/min
- Max. static pressure: 9.1 kPa~13.5 kPa
- Collection efficiency: Min. 99.97% (for 0.3μm or larger particles)
- Rated voltage (50/60Hz): Single phase, 100VAC,200VAC
- Max. intake temperature: ＋40℃
- Certificates/Approvals: EU RoHS
Related products
Machinery/ Industrial Equipment
Salient features
- Classification: OHM electric, OHM Distributor, OHM Electric Distributor, OMC-11 series, Filter
- Energy saving yet high power!
- Designed small and light weight
- Eliminates filter replacement and industrial waste
- Max. air flow ：8/10m3/min
- Collection efficiency：Min. 83%±5％ Particle diameter 2µm or larger
- Rated voltage：3-phase, 200VAC 50Hz/ 200 ‒ 220VAC 60Hz
- Suction port diameter：Ø123mm
- Certificates/Approvals: EU RoHS
Note
- Working temperature : 0 to ＋40℃
- Max. suction air temp : ＋50℃
Machinery/ Industrial Equipment
Electrostatic oil mist collector OMC-E series_OHM Distributor
Salient features
- Classification: OHM electric, OHM Distributor, OHM Electric Distributor, OMC-E series
- High collection capability by ionizing mist!
- Suitable for both oil and water-soluble mists
- Max. air flow ：8 / 10m3/min~ 40/45m3/min
- Collection efficiency：Min. 99% (by gravimetric method)
- Max. oil mist density :300mg3/min
- Rated voltage：3-phase, 200 VAC 50/60 Hz
- Suction port diameter：Ø148mm~Ø200mm
- Certificates/Approvals: EU RoHS
Note
- Working temperature : 0 to ＋40℃
- Max. suction air temp : ＋40℃
Machinery/ Industrial Equipment
For General Environments High volume type Laser marker use OSK-ACC_OHM Distributor
Salient features
- Classification: OHM electric, OHM Distributor, OHM Electric Distributor, General Environments, High Volume, Laser marker, OSK-ACC
- Suitable for laser markers of short time operation and low viscosity fumes in general environments
- Max. air volume: 2.8 m3/min
- Max. static pressure: 2.5 kPa
- Collection efficiency: Min.99% (for 0.3μm or larger particles)
- Rated voltage (50/60Hz): Single phase, 100VAC
- Certificates/Approvals : EU RoHS2
Note
- Working temperature : 0 to ＋40℃
- Max. intake temperature : ＋40℃
Machinery/ Industrial Equipment
Non-fluorocarbon Series Standard type Lateral mounting_OHM Distributor
Salient features
- Classification: OHM electric, OHM Distributor, OHM Electric Distributor
- Type of mounting: Lateral mounting
- Cooling capacity : 250/300W ~ 2600/2900W
- Rated volage（50/60Hz）: Single phase 200~240VAC
- Communication function: RS485 (Modbus / RTU)
- Function: Off-temperature alarm, Detection of abnormal heat dissipation, Detection of temperature sensor disconnection,
- Maintenance reminder, Forced cooling operation for inspection
- Certificates/Approvals : EU RoHS2, CE
- Part Number:
OCA-H300BC-AW2
OCA-H600BC-AW2
OCA-H1000BC-AW2
OCA-H1600BC-AW2
OCA-H2200BC-AW2
OCA-H2900BC-AW2
Note
- Working temperature : ＋20 to ＋50℃ ( Nominal values at 35℃ temperature both inside and outside are indicated in “Rated” and values at 50℃ outside and 35℃ inside are indicated in “Max)
- Temp. setting range: ＋30 to ＋45℃ （Initial setting:+35℃) (Use only within the specified temperature range)
- Relating products:
Machinery/ Industrial Equipment
Salient features
- Classification: OHM electric, OHM Distributor, OHM Electric Distributor, OMC-N2 series
- Super high collection efficiency as Non-Filter!
- Eliminates filter replacement and industrial waste
- Max. air flow ：4.5/5.0m3/min~ 21.5/24.5m3/min
- Collection efficiency：Min. 99% Particle diameter 2µm or larger
- Rated voltage：3-phase, 200VAC 50Hz/ 200 ‒ 220VAC 60Hz
- Suction port diameter：Ø98mm~Ø198mm
- Certificates/Approvals: EU RoHS2
Note
- Working temperature : 0 to ＋40℃
- Max. suction air temp : ＋80℃
Salient features
- Classification: OHM electric, OHM Distributor, OHM Electric Distributor
- Type of mounting: Roof mounting
- Cooling capacity : 300/350W ~ 2700/3000W
- Rated volage（50/60Hz）: Single phase 200~240VAC
- Communication function: RS485 (Modbus / RTU)
- Function:
Off-temperature alarm, Detection of abnormal heat dissipation, Detection of temperature sensor disconnection,
Maintenance reminder, Forced cooling operation for inspection,Detection of drain overflows, Detection of evaporator ice-up.
- Certificates/Approvals : EU RoHS2, CE
- Part number: OCA-S300AC-A100
Note
- Working temperature : ＋20 to ＋50℃ ( Nominal values at 35℃ temperature both inside and outside are indicated in “Rated” and values at 50℃ outside and 35℃ inside are indicated in “Max)
- Temp. setting range: ＋30 to ＋45℃ （Initial setting:+35℃) (Use only within the specified temperature range)
Wiring Materials/Accessories
Liquidtight insulation cap “QUICK CAP” lineup_OHM Distributor
Salient features
- Classification: OHM, OHM machine, OHM electric, OHM Distributor, OHM Electric Distributor, Quickcap, Quick cap, Liquidtight, Insulation cap, lineup
- OA-QW with connection guide for single core cable splice (Provides excellent liquid and dust tight splicing of power cables, Applicable cable diameter Ø4 – 30mm)
- OA-QW with connection guide for 2 core cable splice (Secures cable connections from liquid and dust, Applicable cable diameter Ø4 -11mm)
- OA-QW with connection guide for 3,4 core cable splice (Provides excellent water and dust tight splicing of signal wires of sensors and limit switches, Applicable cable diameter Ø4 – 13 mm)
Note
- Protection category : IP 67
- Rated volted : 600V DC/AC
- Working temperature -25 to ＋80℃
- Oilproof : yes
- Weatherproof : yes
Wiring Materials/Accessories
Salient features
- Classification: OHM, OHM machine, OHM electric, OHM Distributor, OHM Electric Distributor, CAPCON, lineup
- OA-1 series Standard (Long selling Cable gland! Accepts wide-ranging cable sizes, Applicable cable diameter Ø3.5 – 19mm)
- OA-1 series for small valves (Applications For cable exits of DIN standard (Pg11) electromagnetic valves, Applicable cable diameter Ø3.5 – 19mm)
Note
- Working temperature : -25to ＋70℃
- Certificates/Approvals : EU RoHS2
